Energy Recovery Ventilation Heat Recovery Ventilation HRV/ERV Air Exchange Controller

  • 1
  • 2

Place of Origin : China

Payment Terms : T/T

WIFI Function : Support Tuya app & Smart life app

Mounting : Standard 86 wall mounting box

Shell Material : PC and ABS

Built in sensors : VOC+PM2.5+CO2+Temperature+Humidity

Delivery Time : 2-3 weeks

Supply Ability : 100000pcs

Price : $103

Support fans : AC, EC, DC fans

RS485 : Support Modbus Protocol

Model Number : G7 Pro

MOQ : 1

Brand Name : OEM or neutral

Certification : CE and RoHS

Contact Now

G7 Pro -- Temperature & Humidity Real-time Monitoring
CO₂ VOC PM2.5 Based Ventilation Control Air Ventilation Controller
Product Overview

G7 Pro is an intelligent fresh air ventilation controller that integrates multiple sensors including PM2.5, CO2, temperature, and humidity. The device features a 7-inch HD color screen with high-sensitivity touch screen design. Equipped with Wi-Fi for remote access and control via the internet, it also includes RS485 port and MODBUS protocol for communication with smart home and building automation systems.

The AC version outputs relay signals to directly control AC fan start, stop, and speed regulation, while the DC version outputs separate control voltages for DC fan operation. Suitable for residential, commercial, and industrial applications, it effectively improves air quality and creates healthy, comfortable, efficient, and energy-saving environments.

Key Features
  • 7-Inch Color Touchscreen Display for intuitive operation and real-time monitoring
  • Automatic Fan Speed Control based on CO₂, PM2.5, and VOC levels
  • Standard 86-Type Wall Mounting for quick and convenient installation
  • Wi-Fi App Control via Smart Life and Tuya App for remote access
  • RS485 Modbus Communication for smart building and HVAC system integration
  • HRV ERV Smart Controller
  • OEM/ODM Customization including UI design, logo printing, and enclosure color options
Technical Specifications

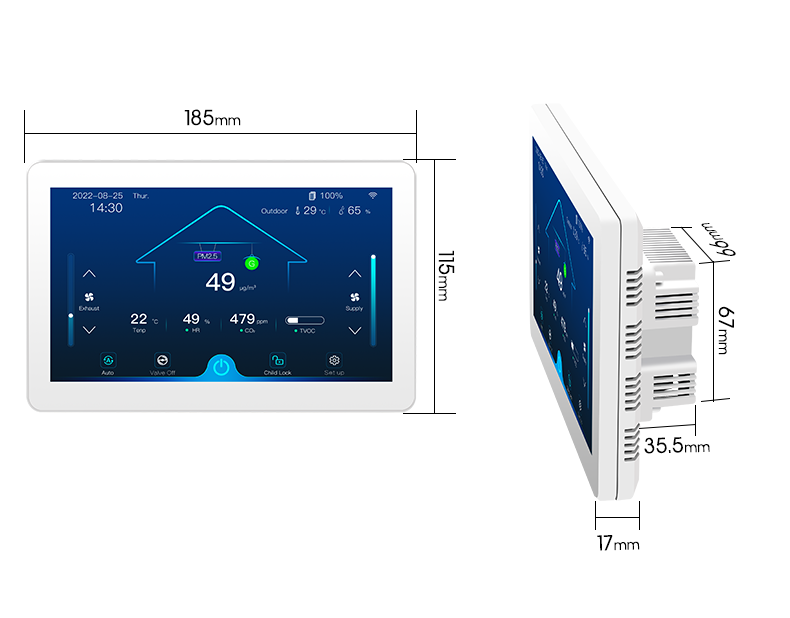

Dimension 115 × 185 mm
Display Interface 7 inch, 1024 x 600
Warm-up Time 2 minutes
Response Time ≤ 10 seconds
Wiring Terminal Max 2.5 mm² wire
Recovery Time ≤ 30 seconds
Rated Voltage AC110-240V, 50/60Hz
Operating Temperature -10℃ to +50℃
Standby Power ≤ 3.0W
Operating Humidity 5％RH to 90％RH
Control Power ≤ 200W
Storage Temperature -10℃ to +60℃
Suitable for Fans AC/EC/DC
PM2.5 Display Range 0μg/m³ to 999μg/m³
Temperature Display Range 0℃ to 99℃
CO2 Display Range 0ppm to 9999ppm
Humidity Display Range 0% to 99%
Fixing Hole Distance 60mm (standard)
